Ambilightfarben stimmen nicht

[mckotte]

Hallo zusammen,

ich bin neu hier und habe das System mal an meinem Fernsehr verbaut.
Habe die W2801 LED´s verbaut und alles andere aus der Anleitung genommen.

Die LED´s leuchten aber weiß ist z.B. pink und blau ist grün und umgekehrt.

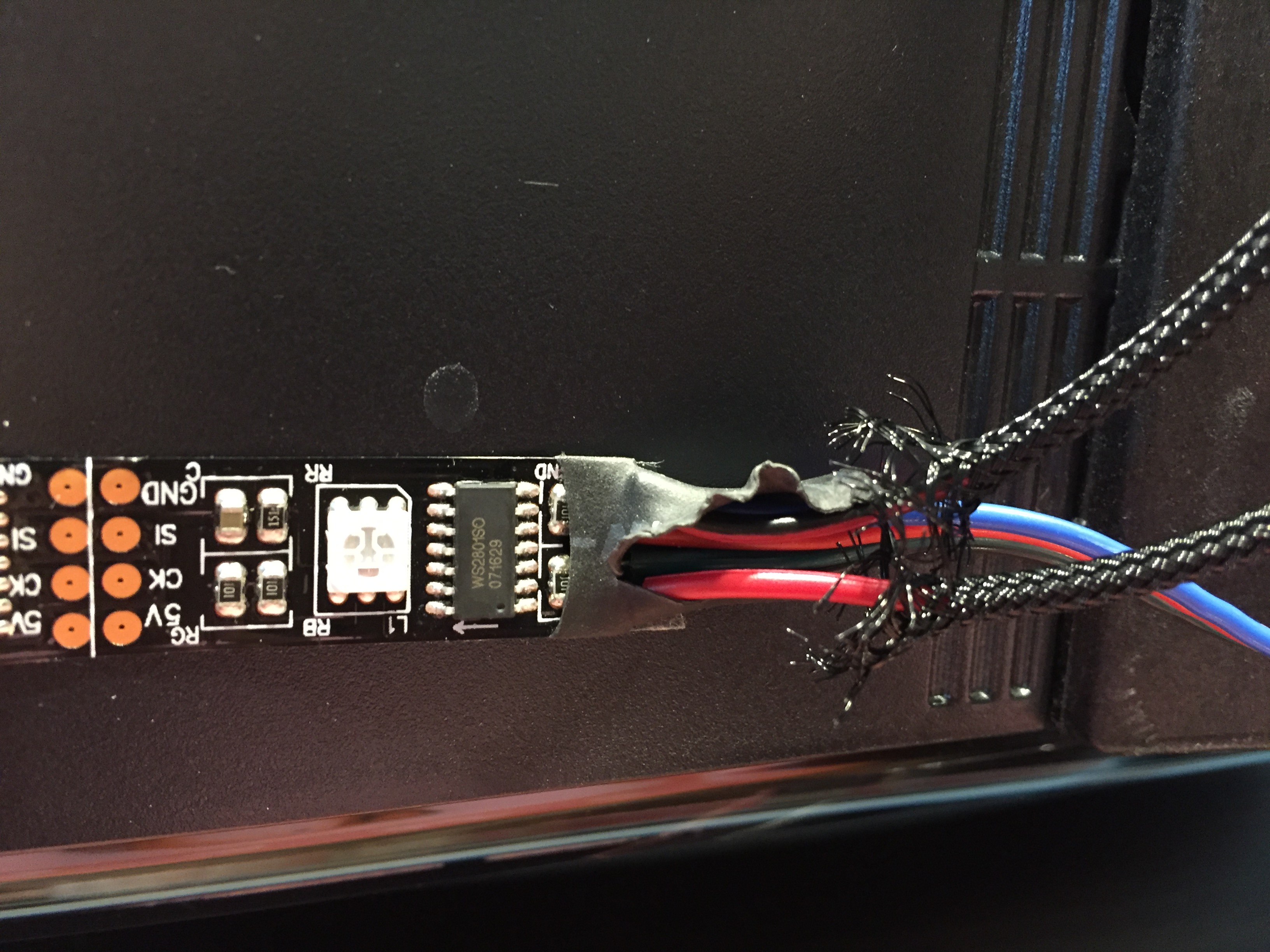

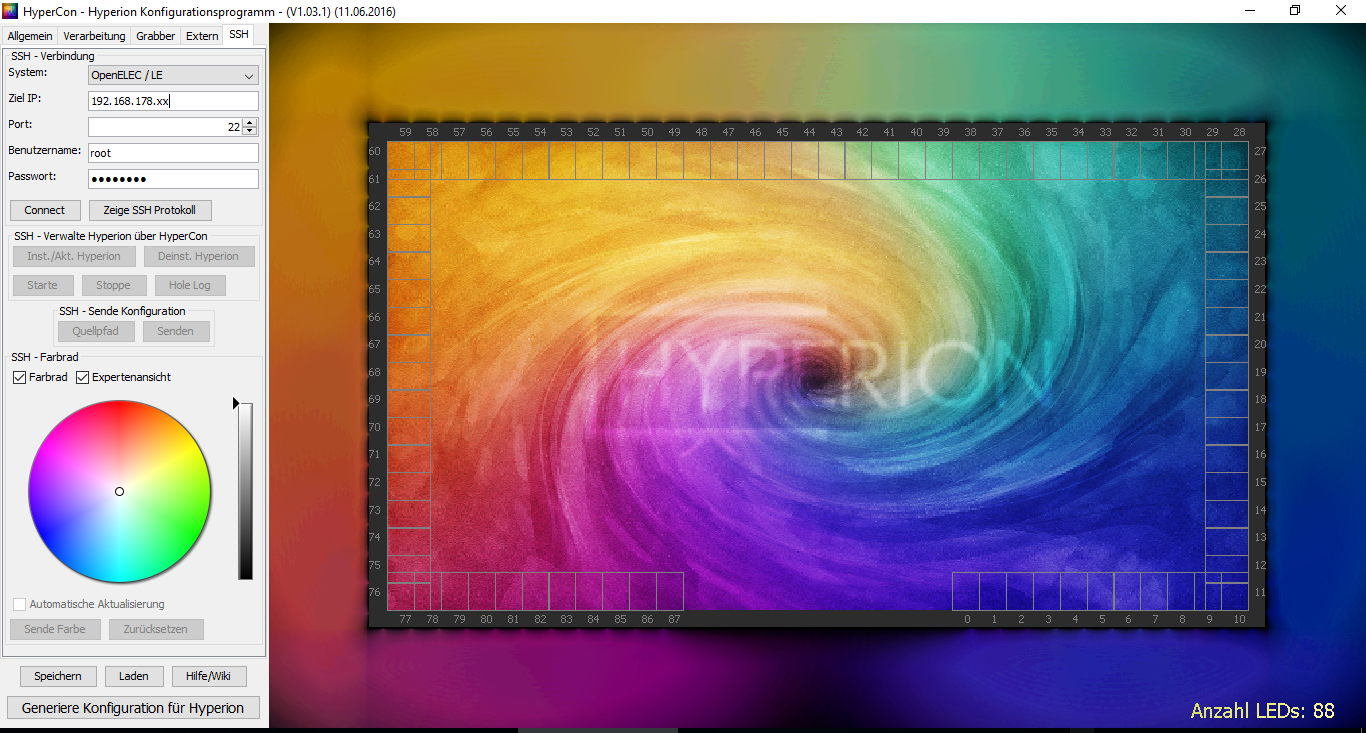

Anbei ein paar Bilder und Scrrenshot`s

[mckotte]

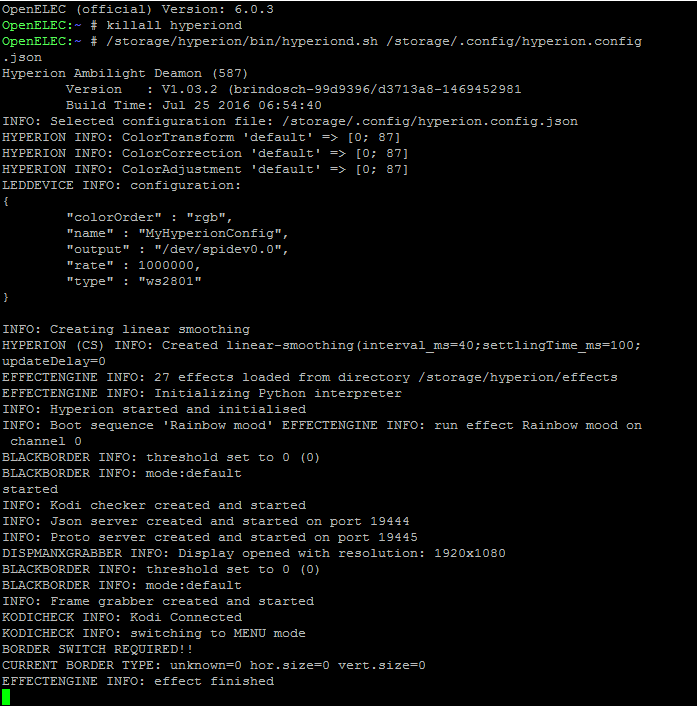

Habe das Testimage installiert.
Die LED´s fangen von vorn rechts unten in der Mitte an.

Hier die config:
