erst einmal vielen Dank an das Forum und diese insgesamt sehr gelungene Seite.
Ich habe die Anleitung von Aki befolgt, der externe Grabber funktioniert auch soweit. Leider leuchten die ersten 18 LEDs und ein paar einzelne nicht. Es leuchten die ersten 17 LEDs nicht, dann leuchtet eine, dann wieder 2 nicht, dann leuchten fast alle (bis auf 2-3 einzelne Ausfälle).
Soeben habe ich getestet ob sich die dunkel bleibenden LEDs verschieben, wenn ich den Startpunkt in Hypercon verändere. Resultat: Es bleiben immer die gleichen LEDs dunkel. Auch eine Änderung ob sich LEDs in der Ecke befinden, brachte keinen Erfolg. Ich vermute daher einen Hardware Fehler?
Außerdem scheint die 18. LED als erste LED erkannt zu werden, was ein Test am Ambilight Testbild vermuten lässt, da die Farben verschoben sind.

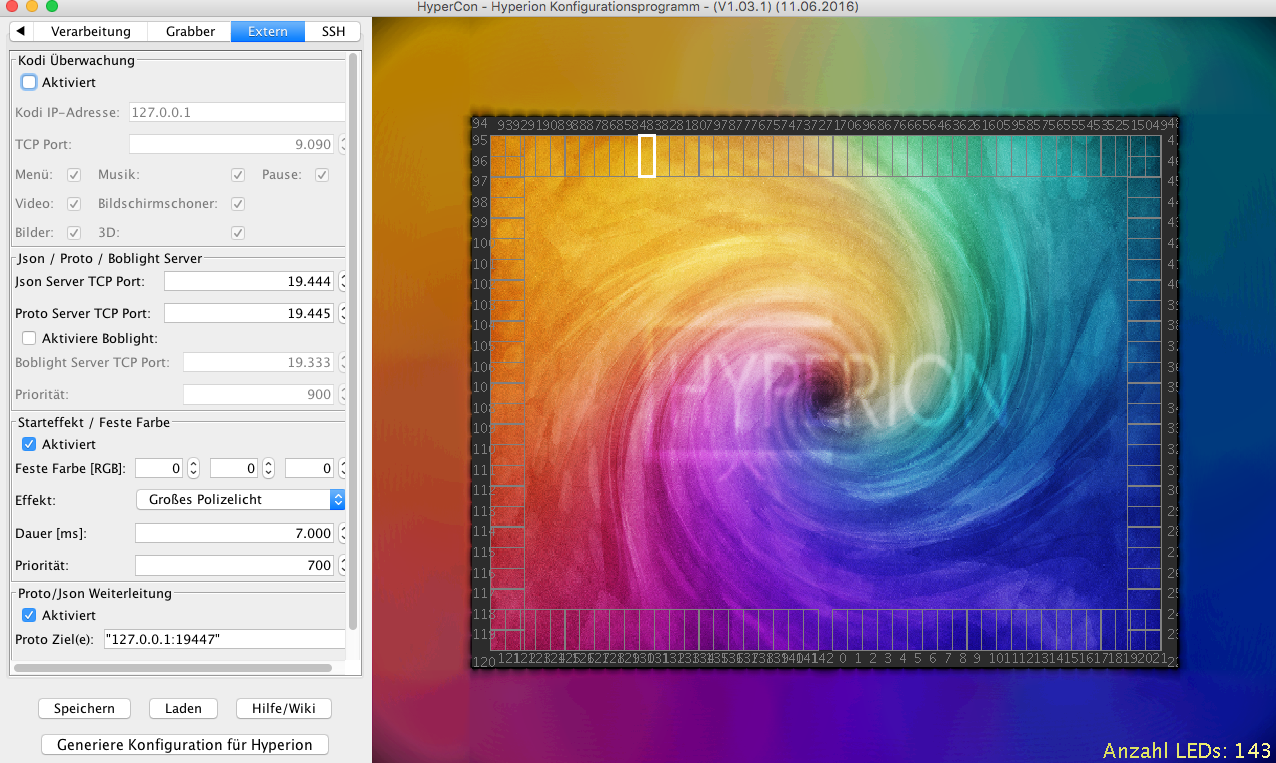

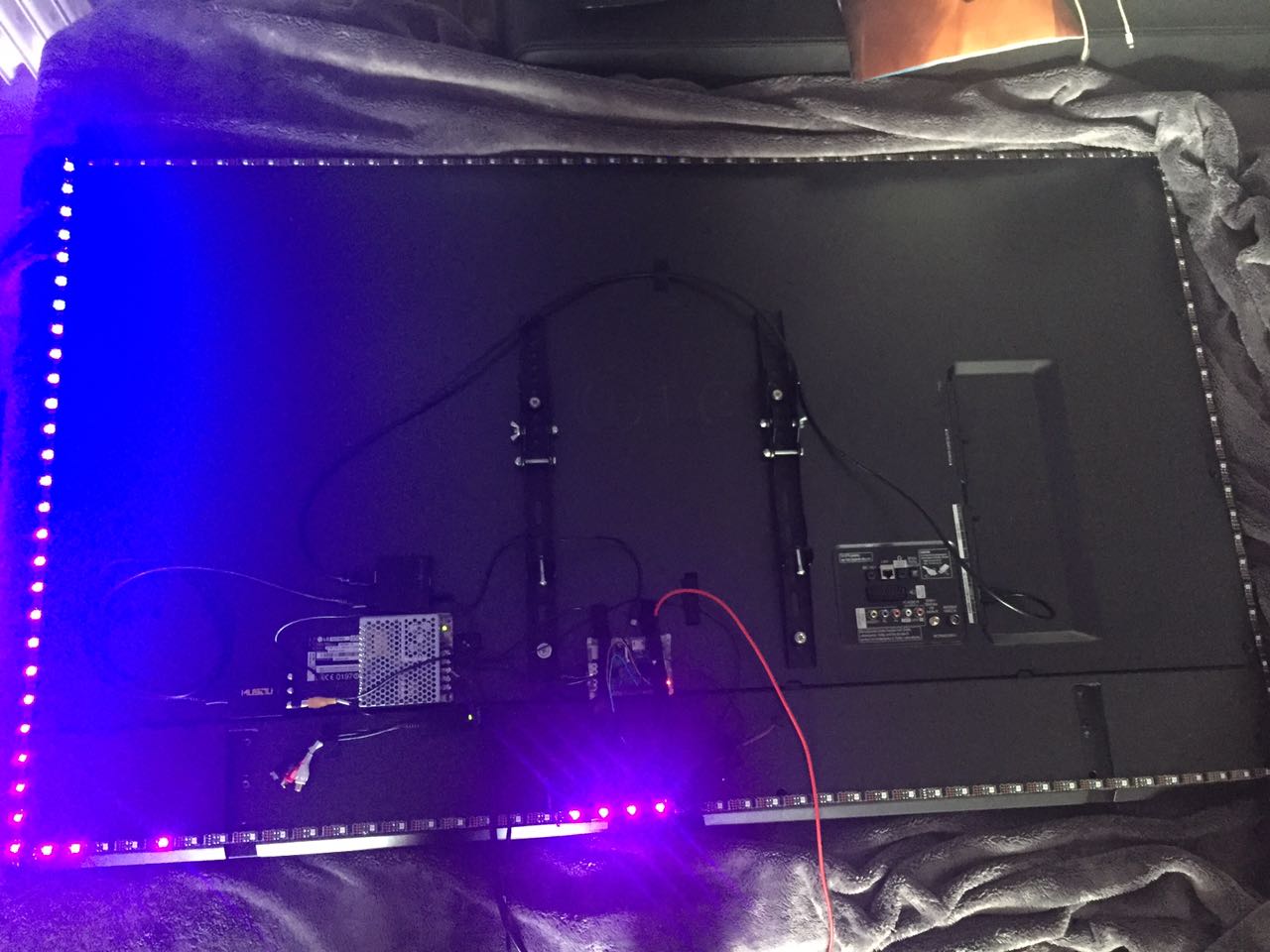

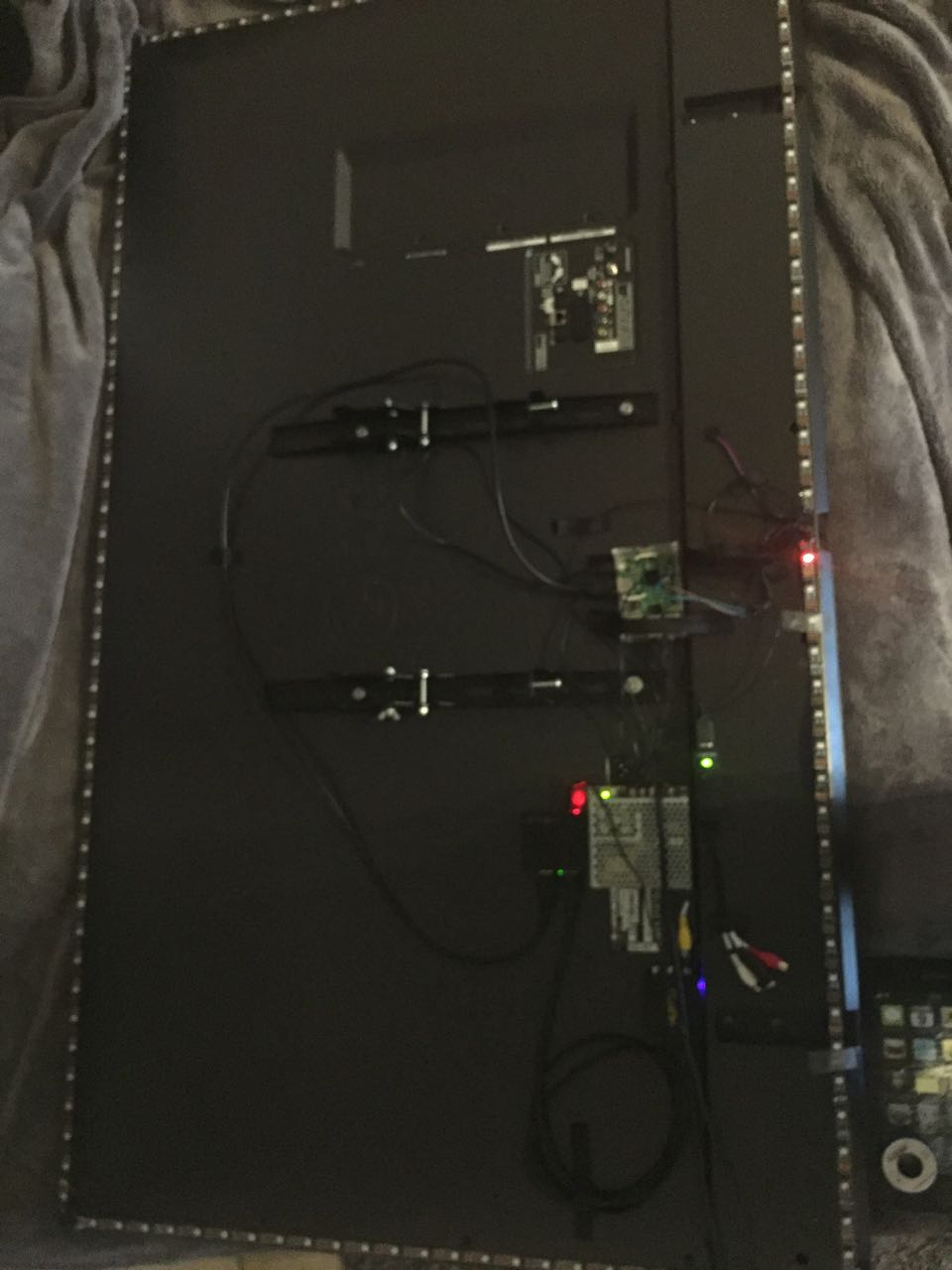

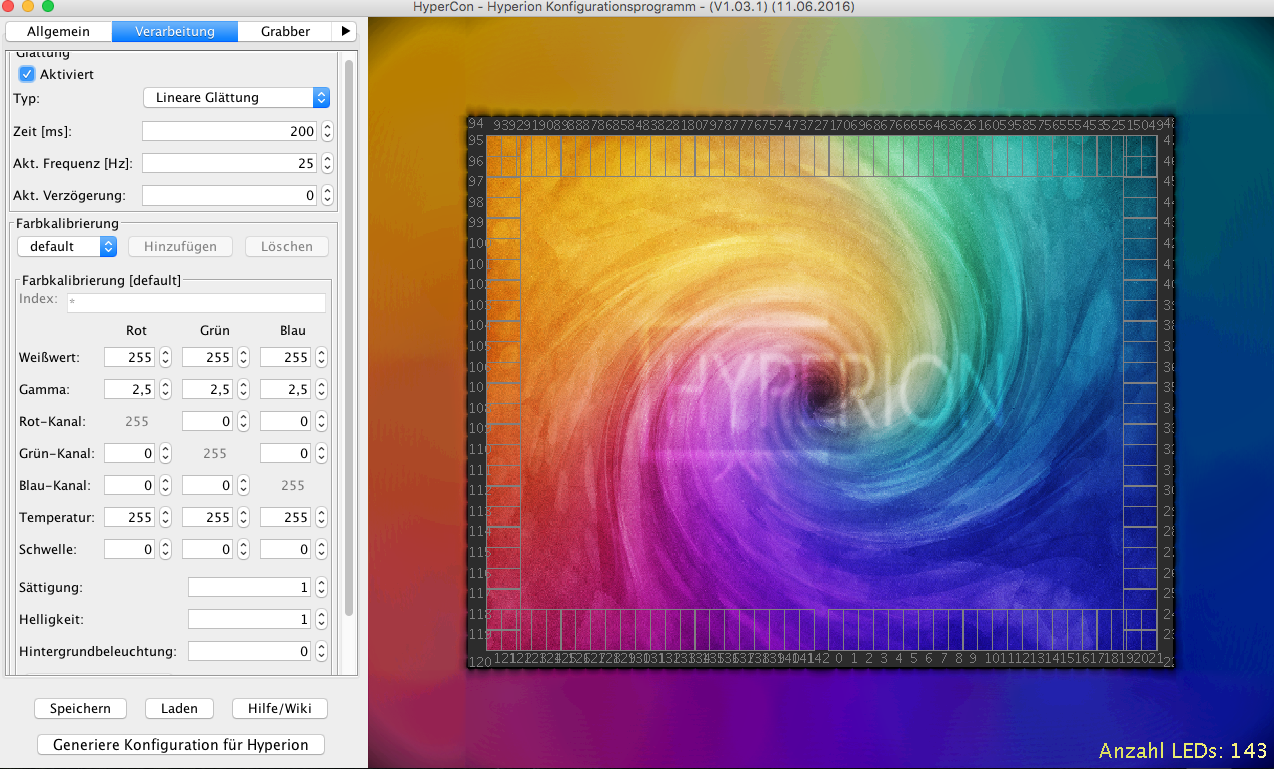

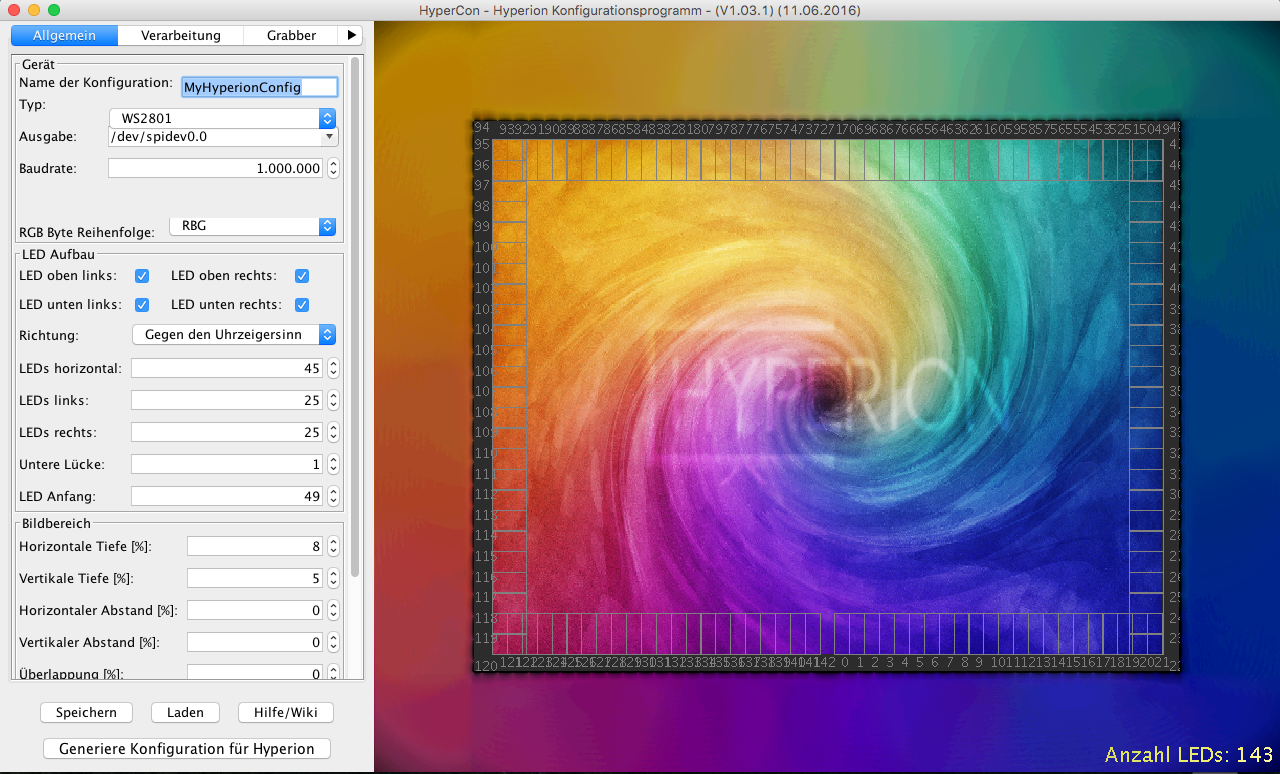

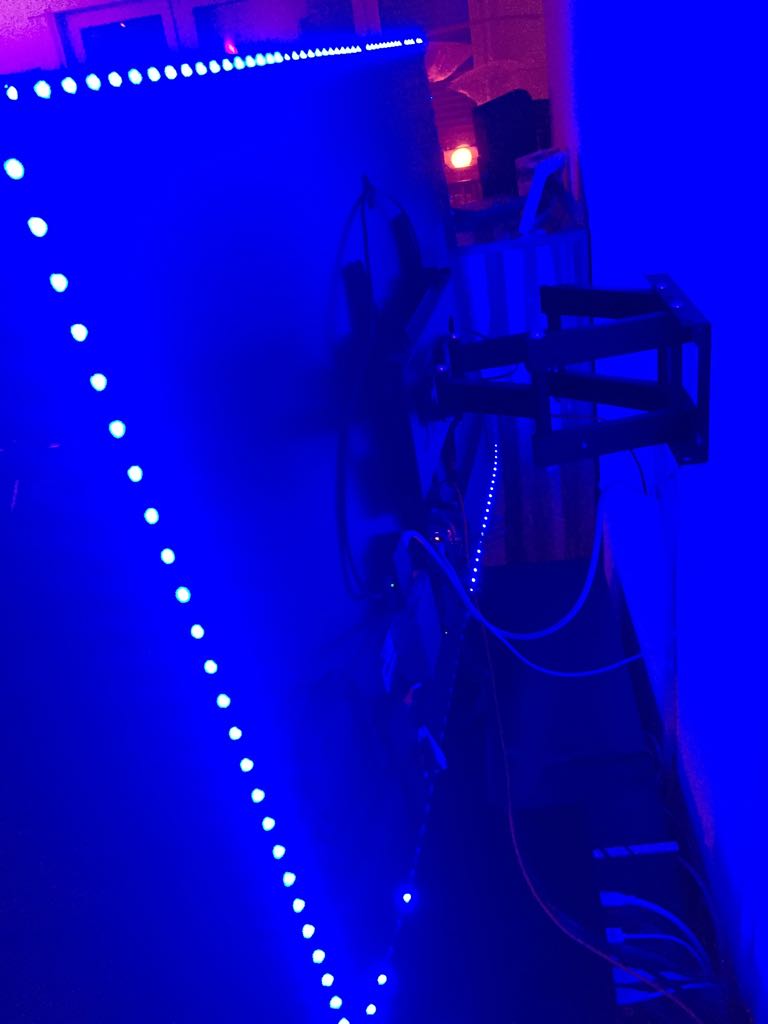

Anbei findet ihr meine Konfigurationsdateien und Bilder vom Aufbau. Die Anzahl der LEDs stimmt mit meinem TV überein.
Die Steuerung über App funktioniert, jedoch werden auch hier die gleichen LEDs nicht angesprochen und bleiben dunkel.
Ich wäre über jeden Hinweis oder Idee die zur Lösung beitragen könnte super dankbar!
Ich habe den WS2801 Stripe:
https://de.aliexpress.com/item/5M-ws280 ... 0027666e2f
Hyperion.config.json:
Code: Alles auswählen
// Automatically generated configuration file for Hyperion ambilight daemon
// Notice: All values are explained with comments at our wiki: wiki.hyperion-project.org (config area)
// Generated by: HyperCon (The Hyperion deamon configuration file builder)
// Created with HyperCon V1.03.1 (11.06.2016)
{
// DEVICE CONFIGURATION
"device" :
{
"name" : "MyHyperionConfig",
"type" : "ws2801",
"output" : "/dev/spidev0.0",
"rate" : 1000000,
"colorOrder" : "rbg"
},
// COLOR CALIBRATION CONFIG
"color" :
{
"channelAdjustment" :
[
{
"id" : "default",
"leds" : "*",
"pureRed" :
{
"redChannel" : 255,
"greenChannel" : 0,
"blueChannel" : 0
},
"pureGreen" :
{
"redChannel" : 0,
"greenChannel" : 255,
"blueChannel" : 0
},
"pureBlue" :
{
"redChannel" : 0,
"greenChannel" : 0,
"blueChannel" : 255
}
}
],
"temperature" :
[
{
"id" : "default",
"leds" : "*",
"correctionValues" :
{
"red" : 255,
"green" : 255,
"blue" : 255
}
}
],
"transform" :
[
{
"id" : "default",
"leds" : "*",
"hsl" :
{
"saturationGain" : 1.0000,
"luminanceGain" : 1.0000,
"luminanceMinimum" : 0.0000
},
"red" :
{
"threshold" : 0.0000,
"gamma" : 2.5000
},
"green" :
{
"threshold" : 0.0000,
"gamma" : 2.5000
},
"blue" :
{
"threshold" : 0.0000,
"gamma" : 2.5000
}
}
],
// SMOOTHING CONFIG
"smoothing" :
{
"type" : "linear",
"time_ms" : 200,
"updateFrequency" : 25.0000,
"updateDelay" : 0
}
},
// V4L2 GRABBER CONFIG
"grabber-v4l2" :
{
"device" : "/dev/video0",
"input" : 0,
"standard" : "NTSC",
"width" : -1,
"height" : -1,
"frameDecimation" : 2,
"sizeDecimation" : 8,
"priority" : 900,
"mode" : "2D",
"cropLeft" : 0,
"cropRight" : 0,
"cropTop" : 0,
"cropBottom" : 0,
"redSignalThreshold" : 0.0,
"greenSignalThreshold" : 0.0,
"blueSignalThreshold" : 0.0
},
// BLACKBORDER CONFIG
"blackborderdetector" :
{
"enable" : true,
"threshold" : 0.05,
"unknownFrameCnt" : 600,
"borderFrameCnt" : 50,
"maxInconsistentCnt" : 10,
"blurRemoveCnt" : 1,
"mode" : "default"
},
// BOOTEFFECT CONFIG
"bootsequence" :
{
"color" : [0,0,0],
"effect" : "Police Lights Solid",
"duration_ms" : 7000,
"priority" : 700
},
// JSON SERVER CONFIG
"jsonServer" :
{
"port" : 19444
},
// PROTO SERVER CONFIG
"protoServer" :
{
"port" : 19445
},
// JSON/PROTO FORWARD CONFIG
"forwarder" :
{
"json" : ["127.0.0.1:19446"],
"proto" : ["127.0.0.1:19447"]
},
// EFFECT PATH
"effects" :
{
"paths" :
[
"/storage/hyperion/effects",
"/usr/share/hyperion/effects"
]
},
// NO FRAME GRABBER CONFIG
// NO KODI CHECK CONFIG
// NO BOBLIGHT SERVER CONFIG
// LED CONFIGURATION
"leds" :
[
{
"index" : 0,
"hscan" : { "minimum" : 0.5111, "maximum" : 0.5333 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 1,
"hscan" : { "minimum" : 0.5333, "maximum" : 0.5556 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 2,
"hscan" : { "minimum" : 0.5556, "maximum" : 0.5778 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 3,
"hscan" : { "minimum" : 0.5778, "maximum" : 0.6000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 4,
"hscan" : { "minimum" : 0.6000, "maximum" : 0.6222 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 5,
"hscan" : { "minimum" : 0.6222, "maximum" : 0.6444 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 6,
"hscan" : { "minimum" : 0.6444, "maximum" : 0.6667 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 7,
"hscan" : { "minimum" : 0.6667, "maximum" : 0.6889 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 8,
"hscan" : { "minimum" : 0.6889, "maximum" : 0.7111 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 9,
"hscan" : { "minimum" : 0.7111, "maximum" : 0.7333 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 10,
"hscan" : { "minimum" : 0.7333, "maximum" : 0.7556 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 11,
"hscan" : { "minimum" : 0.7556, "maximum" : 0.7778 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 12,
"hscan" : { "minimum" : 0.7778, "maximum" : 0.8000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 13,
"hscan" : { "minimum" : 0.8000, "maximum" : 0.8222 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 14,
"hscan" : { "minimum" : 0.8222, "maximum" : 0.8444 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 15,
"hscan" : { "minimum" : 0.8444, "maximum" : 0.8667 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 16,
"hscan" : { "minimum" : 0.8667, "maximum" : 0.8889 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 17,
"hscan" : { "minimum" : 0.8889, "maximum" : 0.9111 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 18,
"hscan" : { "minimum" : 0.9111, "maximum" : 0.9333 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 19,
"hscan" : { "minimum" : 0.9333, "maximum" : 0.9556 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 20,
"hscan" : { "minimum" : 0.9556, "maximum" : 0.9778 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 21,
"hscan" : { "minimum" : 0.9778, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 22,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 23,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.9600, "maximum" : 1.0000 }
},
{
"index" : 24,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 0.9600 }
},
{
"index" : 25,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.8800, "maximum" : 0.9200 }
},
{
"index" : 26,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.8400, "maximum" : 0.8800 }
},
{
"index" : 27,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.8000, "maximum" : 0.8400 }
},
{
"index" : 28,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.7600, "maximum" : 0.8000 }
},
{
"index" : 29,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.7200, "maximum" : 0.7600 }
},
{
"index" : 30,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.6800, "maximum" : 0.7200 }
},
{
"index" : 31,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.6400, "maximum" : 0.6800 }
},
{
"index" : 32,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.6000, "maximum" : 0.6400 }
},
{
"index" : 33,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.5600, "maximum" : 0.6000 }
},
{
"index" : 34,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.5200, "maximum" : 0.5600 }
},
{
"index" : 35,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.4800, "maximum" : 0.5200 }
},
{
"index" : 36,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.4400, "maximum" : 0.4800 }
},
{
"index" : 37,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.4000, "maximum" : 0.4400 }
},
{
"index" : 38,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.3600, "maximum" : 0.4000 }
},
{
"index" : 39,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.3200, "maximum" : 0.3600 }
},
{
"index" : 40,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.2800, "maximum" : 0.3200 }
},
{
"index" : 41,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.2400, "maximum" : 0.2800 }
},
{
"index" : 42,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.2000, "maximum" : 0.2400 }
},
{
"index" : 43,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.1600, "maximum" : 0.2000 }
},
{
"index" : 44,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.1200, "maximum" : 0.1600 }
},
{
"index" : 45,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0800, "maximum" : 0.1200 }
},
{
"index" : 46,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0400, "maximum" : 0.0800 }
},
{
"index" : 47,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0400 }
},
{
"index" : 48,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 49,
"hscan" : { "minimum" : 0.9778, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 50,
"hscan" : { "minimum" : 0.9556, "maximum" : 0.9778 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 51,
"hscan" : { "minimum" : 0.9333, "maximum" : 0.9556 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 52,
"hscan" : { "minimum" : 0.9111, "maximum" : 0.9333 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 53,
"hscan" : { "minimum" : 0.8889, "maximum" : 0.9111 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 54,
"hscan" : { "minimum" : 0.8667, "maximum" : 0.8889 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 55,
"hscan" : { "minimum" : 0.8444, "maximum" : 0.8667 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 56,
"hscan" : { "minimum" : 0.8222, "maximum" : 0.8444 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 57,
"hscan" : { "minimum" : 0.8000, "maximum" : 0.8222 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 58,
"hscan" : { "minimum" : 0.7778, "maximum" : 0.8000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 59,
"hscan" : { "minimum" : 0.7556, "maximum" : 0.7778 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 60,
"hscan" : { "minimum" : 0.7333, "maximum" : 0.7556 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 61,
"hscan" : { "minimum" : 0.7111, "maximum" : 0.7333 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 62,
"hscan" : { "minimum" : 0.6889, "maximum" : 0.7111 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 63,
"hscan" : { "minimum" : 0.6667, "maximum" : 0.6889 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 64,
"hscan" : { "minimum" : 0.6444, "maximum" : 0.6667 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 65,
"hscan" : { "minimum" : 0.6222, "maximum" : 0.6444 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 66,
"hscan" : { "minimum" : 0.6000, "maximum" : 0.6222 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 67,
"hscan" : { "minimum" : 0.5778, "maximum" : 0.6000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 68,
"hscan" : { "minimum" : 0.5556, "maximum" : 0.5778 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 69,
"hscan" : { "minimum" : 0.5333, "maximum" : 0.5556 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 70,
"hscan" : { "minimum" : 0.5111, "maximum" : 0.5333 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 71,
"hscan" : { "minimum" : 0.4889, "maximum" : 0.5111 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 72,
"hscan" : { "minimum" : 0.4667, "maximum" : 0.4889 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 73,
"hscan" : { "minimum" : 0.4444, "maximum" : 0.4667 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 74,
"hscan" : { "minimum" : 0.4222, "maximum" : 0.4444 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 75,
"hscan" : { "minimum" : 0.4000, "maximum" : 0.4222 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 76,
"hscan" : { "minimum" : 0.3778, "maximum" : 0.4000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 77,
"hscan" : { "minimum" : 0.3556, "maximum" : 0.3778 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 78,
"hscan" : { "minimum" : 0.3333, "maximum" : 0.3556 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 79,
"hscan" : { "minimum" : 0.3111, "maximum" : 0.3333 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 80,
"hscan" : { "minimum" : 0.2889, "maximum" : 0.3111 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 81,
"hscan" : { "minimum" : 0.2667, "maximum" : 0.2889 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 82,
"hscan" : { "minimum" : 0.2444, "maximum" : 0.2667 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 83,
"hscan" : { "minimum" : 0.2222, "maximum" : 0.2444 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 84,
"hscan" : { "minimum" : 0.2000, "maximum" : 0.2222 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 85,
"hscan" : { "minimum" : 0.1778, "maximum" : 0.2000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 86,
"hscan" : { "minimum" : 0.1556, "maximum" : 0.1778 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 87,
"hscan" : { "minimum" : 0.1333, "maximum" : 0.1556 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 88,
"hscan" : { "minimum" : 0.1111, "maximum" : 0.1333 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 89,
"hscan" : { "minimum" : 0.0889, "maximum" : 0.1111 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 90,
"hscan" : { "minimum" : 0.0667, "maximum" : 0.0889 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 91,
"hscan" : { "minimum" : 0.0444, "maximum" : 0.0667 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 92,
"hscan" : { "minimum" : 0.0222, "maximum" : 0.0444 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 93,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0222 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 94,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 95,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0400 }
},
{
"index" : 96,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.0400, "maximum" : 0.0800 }
},
{
"index" : 97,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.0800, "maximum" : 0.1200 }
},
{
"index" : 98,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.1200, "maximum" : 0.1600 }
},
{
"index" : 99,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.1600, "maximum" : 0.2000 }
},
{
"index" : 100,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.2000, "maximum" : 0.2400 }
},
{
"index" : 101,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.2400, "maximum" : 0.2800 }
},
{
"index" : 102,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.2800, "maximum" : 0.3200 }
},
{
"index" : 103,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.3200, "maximum" : 0.3600 }
},
{
"index" : 104,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.3600, "maximum" : 0.4000 }
},
{
"index" : 105,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.4000, "maximum" : 0.4400 }
},
{
"index" : 106,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.4400, "maximum" : 0.4800 }
},
{
"index" : 107,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.4800, "maximum" : 0.5200 }
},
{
"index" : 108,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.5200, "maximum" : 0.5600 }
},
{
"index" : 109,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.5600, "maximum" : 0.6000 }
},
{
"index" : 110,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.6000, "maximum" : 0.6400 }
},
{
"index" : 111,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.6400, "maximum" : 0.6800 }
},
{
"index" : 112,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.6800, "maximum" : 0.7200 }
},
{
"index" : 113,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.7200, "maximum" : 0.7600 }
},
{
"index" : 114,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.7600, "maximum" : 0.8000 }
},
{
"index" : 115,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.8000, "maximum" : 0.8400 }
},
{
"index" : 116,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.8400, "maximum" : 0.8800 }
},
{
"index" : 117,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.8800, "maximum" : 0.9200 }
},
{
"index" : 118,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.9200, "maximum" : 0.9600 }
},
{
"index" : 119,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.9600, "maximum" : 1.0000 }
},
{
"index" : 120,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 121,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0222 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 122,
"hscan" : { "minimum" : 0.0222, "maximum" : 0.0444 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 123,
"hscan" : { "minimum" : 0.0444, "maximum" : 0.0667 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 124,
"hscan" : { "minimum" : 0.0667, "maximum" : 0.0889 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 125,
"hscan" : { "minimum" : 0.0889, "maximum" : 0.1111 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 126,
"hscan" : { "minimum" : 0.1111, "maximum" : 0.1333 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 127,
"hscan" : { "minimum" : 0.1333, "maximum" : 0.1556 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 128,
"hscan" : { "minimum" : 0.1556, "maximum" : 0.1778 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 129,
"hscan" : { "minimum" : 0.1778, "maximum" : 0.2000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 130,
"hscan" : { "minimum" : 0.2000, "maximum" : 0.2222 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 131,
"hscan" : { "minimum" : 0.2222, "maximum" : 0.2444 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 132,
"hscan" : { "minimum" : 0.2444, "maximum" : 0.2667 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 133,
"hscan" : { "minimum" : 0.2667, "maximum" : 0.2889 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 134,
"hscan" : { "minimum" : 0.2889, "maximum" : 0.3111 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 135,
"hscan" : { "minimum" : 0.3111, "maximum" : 0.3333 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 136,
"hscan" : { "minimum" : 0.3333, "maximum" : 0.3556 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 137,
"hscan" : { "minimum" : 0.3556, "maximum" : 0.3778 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 138,
"hscan" : { "minimum" : 0.3778, "maximum" : 0.4000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 139,
"hscan" : { "minimum" : 0.4000, "maximum" : 0.4222 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 140,
"hscan" : { "minimum" : 0.4222, "maximum" : 0.4444 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 141,
"hscan" : { "minimum" : 0.4444, "maximum" : 0.4667 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 142,
"hscan" : { "minimum" : 0.4667, "maximum" : 0.4889 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
}
],
"endOfJson" : "endOfJson"
}
killall hyperiond
/storage/hyperion/bin/hyperiond.sh /storage/.config/hyperion.config.json liefert folgenden Code:
Code: Alles auswählen
OpenELEC:~ # killall hyperiond
OpenELEC:~ # /storage/hyperion/bin/hyperiond.sh /storage/.config/hyperion.config
.json
Hyperion Ambilight Deamon (731)
Version : V1.03.3 (brindosch-2fbbcff/2f01dfa-1495880388
Build Time: Jun 3 2017 02:06:37
INFO: Selected configuration file: /storage/.config/hyperion.config.json
HYPERION INFO: ColorTransform 'default' => [0; 142]
HYPERION INFO: ColorCorrection 'default' => [0; 142]
HYPERION INFO: ColorAdjustment 'default' => [0; 142]
LEDDEVICE INFO: configuration:
{
"colorOrder" : "rbg",
"name" : "MyHyperionConfig",
"output" : "/dev/spidev0.0",
"rate" : 1000000,
"type" : "ws2801"
}
HYPERION INFO: Json forward to 127.0.0.1:19446
HYPERION INFO: Proto forward to 127.0.0.1:19447
INFO: Creating linear smoothing
HYPERION (CS) INFO: Created linear-smoothing(interval_ms=40;settlingTime_ms=200;updateDelay=0
EFFECTENGINE INFO: 27 effects loaded from directory /storage/hyperion/effects
EFFECTENGINE INFO: Initializing Python interpreter
INFO: Hyperion started and initialised
INFO: Boot sequence 'Police Lights Solid' EFFECTENGINE INFO: run effect Police Lights Solid on channel 0
BLACKBORDER INFO: threshold set to 0.05 (13)
BLACKBORDER INFO: mode:default
started
INFO: Json server created and started on port 19444
PROTOCONNECTION INFO: Connecting to Hyperion: 127.0.0.1:19447
INFO: Proto server created and started on port 19445
V4L2GRABBER INFO: width=720 height=480
V4L2GRABBER INFO: pixel format=YUYV
BLACKBORDER INFO: threshold set to 0.05 (13)
BLACKBORDER INFO: mode:default
V4L2GRABBER INFO: signal threshold set to: {0,0,0}
V4L2GRABBER INFO: started
INFO: V4L2 grabber created and started
BORDER SWITCH REQUIRED!!
CURRENT BORDER TYPE: unknown=0 hor.size=0 vert.size=0
V4L2GRABBER INFO: stopped
EFFECTENGINE INFO: effect finished
V4L2GRABBER INFO: started
Config.txt
Code: Alles auswählen
################################################################################
# This file is part of OpenELEC - http://www.openelec.tv
# Copyright (C) 2009-2014 Stephan Raue (stephan@openelec.tv)
# Inspired and partly copied from:
# http://youresuchageek.blogspot.fr/2012/09/howto-raspberry-pi-openelec-on.html
#
# OpenELEC is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 2 of the License, or
# (at your option) any later version.
#
# OpenELEC is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with OpenELEC. If not, see <http://www.gnu.org/licenses/>.
################################################################################
# Bootloader configuration - config.txt
################################################################################
################################################################################
# Memory (System/GPU configuration )
################################################################################
# default GPU memory split (do not change if you do not know what you are doing)
gpu_mem=128
# SDRAM size based GPU memory split, uncomment and setup to override 'gpu_mem'
gpu_mem_256=112
gpu_mem_512=160
gpu_mem_1024=256
################################################################################
# Overclocking settings
# WARNING: Do not change/enable if you do not know what you are doing!
# The System may become unstable or you can have data corruption or
# you can loose your warranty if you set wrong settings
#
# please read: http://elinux.org/RPi_config.txt#Overclocking_configuration
################################################################################
# Overclock mode settings.
#
# default recommended values are: arm_freq | core_freq | sdram_freq | over_voltage
# no overclocking : 700 | 250 | 400 | 0
# mode 'Modest' : 800 | 300 | 400 | 0
# mode 'Medium' : 900 | 333 | 450 | 2
# mode 'High' : 950 | 450 | 450 | 6
# mode 'Turbo' : 1000 | 500 | 600 | 6
# mode 'Pi2' : 1000 | 500 | 500 | 2
# arm_freq=700
# core_freq=250
# sdram_freq=400
# over_voltage=0
# set to 'force_turbo=1' to disable dynamic overclocking (you can lose your warranty!)
force_turbo=0
# If you have any data corruption using Turbo Mode and overclocking
# try with this setting uncommented
# If this still fails, try to use Medium mode without "over_voltage=2"
# If it ultimately keeps failing, forget about this until it gets fixed
# Use a more conservative mode that will works fine in any cases:
# initial_turbo=30
################################################################################
# Overscan settings
################################################################################
# Make display smaller to stop text spilling off the screen
# see also http://www.raspberrypi.org/phpBB3/viewtopic.php?f=67&t=15700
# overscan_scale=1
# disable_overscan=1
# Adapt overscan values to your needs
# overscan_left=57
# overscan_right=59
# overscan_top=20
# overscan_bottom=20
################################################################################
# various settings see also: http://elinux.org/RPi_config.txt
################################################################################
# Force HDMI even if unplugged or powered off
hdmi_force_hotplug=1
# Doesn't sent initial active source message.
# Avoids bringing CEC (enabled TV) out of standby and channel switch when
# rebooting.
hdmi_ignore_cec_init=1
################################################################################
# License keys to enable GPU hardware decoding for various codecs
# to obtain keys visit the shop at http://www.raspberrypi.com
################################################################################
# decode_MPG2=0x00000000
# decode_WVC1=0x00000000
# decode_DTS=0x00000000
# decode_DDP=0x00000000
################################################################################
# End of default configuration
# all values below this line were inserted from config.txt.bk (your old config)
# and can be merged with the above values
################################################################################
# Ambilight Modul aktivieren
dtparam=spi=on
# mehr USB Power
max_usb_current=1
VG
Howlin
