Ambilight erkennt Kodi nicht

[devilmorpheus]

Hallo zusammen,
Ich habe folgendes Problem:
Mir kommt es vor als würde Hyperion den Kodi nicht erkennen. Die LEDs leuchten dauerhaft, aber ich kann sie auch nicht verändern. Welche IP muss ich im Hyperion Tool nutzen? Die vorhinderlegte oder die richtige wo der Kodi hat?
Vielen Dank für die Hilfe

[Marci_Marc]

Wie die IP von deinem Raspberry ist, wirst du wohl am Ehesten wissen. diese musst du natürlich auch eintragen. Ausserdem wäre deine Hyperion Config hilfreich

[devilmorpheus]

das steht in der log:
Hyperion Ambilight Deamon (514)
ssh in: Version : V1.03.4 (brindosch-c750c41/dc6a602-1522918225
ssh in: Build Time: Apr 5 2018 01:57:25
ssh in: INFO: Selected configuration file: /storage/.config/hyperion.config.json
ssh in: HYPERION INFO: ColorTransform 'default' => [0; 108]
ssh in: HYPERION INFO: ColorCorrection 'default' => [0; 108]
ssh in: HYPERION INFO: ColorAdjustment 'default' => [0; 108]
ssh in: LEDDEVICE INFO: configuration:
ssh in: {
ssh in: "colorOrder" : "bgr",
ssh in: "name" : "MyHyperionConfig",
ssh in: "output" : "/dev/spidev0.0",
ssh in: "rate" : 1000000,
ssh in: "type" : "ws2801"
ssh in: }
ssh in: INFO: Creating linear smoothing
ssh in: HYPERION (CS) INFO: Created linear-smoothing(interval_ms=40;settlingTime_ms=100;updateDelay=0
ssh in: EFFECTENGINE INFO: 27 effects loaded from directory /storage/hyperion/effects
ssh in: EFFECTENGINE INFO: Initializing Python interpreter
ssh in: INFO: Hyperion started and initialised
ssh in: INFO: Boot sequence 'Rainbow swirl fast' EFFECTENGINE INFO: run effect Rainbow swirl fast on channel 0
ssh in: BLACKBORDER INFO: threshold set to 0 (0)
ssh in: BLACKBORDER INFO: mode:default
ssh in: started
ssh in: INFO: Kodi checker created and started
ssh in: INFO: Json server created and started on port 19444
ssh in: INFO: Proto server created and started on port 19445
ssh in: DISPMANXGRABBER INFO: Display opened with resolution: 1920x1080
ssh in: BLACKBORDER INFO: threshold set to 0 (0)
ssh in: BLACKBORDER INFO: mode:default
ssh in: INFO: Frame grabber created and started
ssh in: KODICHECK INFO: Kodi Connected
ssh in: BORDER SWITCH REQUIRED!!
ssh in: CURRENT BORDER TYPE: unknown=0 hor.size=0 vert.size=0
ssh in: EFFECTENGINE INFO: effect finished

[Donald]

Die Log sieht gut aus. Hast du in Kodi auf Android evtl. die HW-Beschleunigung aktiv ? Das geht nicht. Wird von Hyperion selbst gebraucht !

[devilmorpheus]

Wie meinst du das? Und wieso android. Wo finde ich das mit der Hardwarebeschleunigung?

[Marci_Marc]

Na ich schätze, wenn du schon fragst, welche IP du nutzen musst, wird es an dieser Stelle schon falsch sein. Dein Raspberry bekommt ja im Regelfalle ine IP via DHCP vom Router. Entweder schaust du irgendwo im Betriebssystem auf dem Raspberry nach, welche IP er hat oder im Router direkt. Diese IP muss natürlich auch im Hypercon Tool hinterlegt werden

[Donald]

Ich glaube, du musst mal richtig erklären, welchen Aufbau du überhaupt nutzt ! Für mich stellte es sich so dar, dass du die Server/Client Version von Kodi bzw. die Hyperion.app nutzt, denn wo willst du sonst die IP vom RPi eintragen ? Klär uns mal auf.

[devilmorpheus]

Also ich nutze wie folgt:
Raspberry Pi3 mit openelec
die LEDs sind diese vom Aliexpress

die Adresse die hier gefordert wird habe ich aus dem Kodi genommen

Hyperion Ambilight Deamon (4163)
Version : V1.03.4 (brindosch-c750c41/dc6a602-1522918225
Build Time: Apr 5 2018 01:57:25
INFO: Selected configuration file: /storage/.config/hyperion.config.json
HYPERION INFO: ColorTransform 'default' => [0; 108]
HYPERION INFO: ColorCorrection 'default' => [0; 108]
HYPERION INFO: ColorAdjustment 'default' => [0; 108]
LEDDEVICE INFO: configuration:
{
"colorOrder" : "rgb",
"name" : "MyHyperionConfig",
"output" : "/dev/spidev0.0",
"rate" : 1000000,
"type" : "ws2801"
}

INFO: Creating linear smoothing
HYPERION (CS) INFO: Created linear-smoothing(interval_ms=40;settlingTime_ms=100;updateDelay=0
EFFECTENGINE INFO: 27 effects loaded from directory /storage/hyperion/effects
EFFECTENGINE INFO: Initializing Python interpreter
INFO: Hyperion started and initialised
INFO: Boot sequence 'Rainbow swirl fast' EFFECTENGINE INFO: run effect Rainbow swirl fast on channel 0
BLACKBORDER INFO: threshold set to 0 (0)
BLACKBORDER INFO: mode:default
started
INFO: Kodi checker created and started
terminate called after throwing an instance of 'std::runtime_error'
what(): JSONSERVER ERROR: could not bind to port
Aborted (core dumped)

################################################################################
# This file is part of OpenELEC - http://www.openelec.tv
# Copyright (C) 2009-2017 Stephan Raue (stephan@openelec.tv)
# Inspired and partly copied from:
# http://youresuchageek.blogspot.fr/2012/ ... ec-on.html
#
# OpenELEC is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 2 of the License, or
# (at your option) any later version.
#
# OpenELEC is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with OpenELEC. If not, see <http://www.gnu.org/licenses/>.
################################################################################
# Bootloader configuration - config.txt
################################################################################

################################################################################
# Memory (System/GPU configuration )
################################################################################

# default GPU memory split (do not change if you do not know what you are doing)
gpu_mem=128

# SDRAM size based GPU memory split, uncomment and setup to override 'gpu_mem'
gpu_mem_256=112
gpu_mem_512=160
gpu_mem_1024=256

################################################################################
# Overclocking settings
# WARNING: Do not change/enable if you do not know what you are doing!
# The System may become unstable or you can have data corruption or
# you can loose your warranty if you set wrong settings
#
# please read: http://elinux.org/RPi_config.txt#Overcl ... figuration
################################################################################

# Overclock mode settings.
#
# default recommended values are: arm_freq | core_freq | sdram_freq | over_voltage
# no overclocking : 700 | 250 | 400 | 0
# mode 'Modest' : 800 | 300 | 400 | 0
# mode 'Medium' : 900 | 333 | 450 | 2
# mode 'High' : 950 | 450 | 450 | 6
# mode 'Turbo' : 1000 | 500 | 600 | 6
# mode 'Pi2' : 1000 | 500 | 500 | 2

# arm_freq=700
# core_freq=250
# sdram_freq=400
# over_voltage=0

# set to 'force_turbo=1' to disable dynamic overclocking (you can lose your warranty!)
force_turbo=0

# If you have any data corruption using Turbo Mode and overclocking
# try with this setting uncommented
# If this still fails, try to use Medium mode without "over_voltage=2"
# If it ultimately keeps failing, forget about this until it gets fixed
# Use a more conservative mode that will works fine in any cases:
# initial_turbo=30

################################################################################
# Overscan settings
################################################################################

# Make display smaller to stop text spilling off the screen
# see also http://www.raspberrypi.org/phpBB3/viewt ... 67&t=15700
# overscan_scale=1
# disable_overscan=1

# Adapt overscan values to your needs
# overscan_left=57
# overscan_right=59
# overscan_top=20
# overscan_bottom=20

################################################################################
# various settings see also: http://elinux.org/RPi_config.txt
################################################################################

# Force HDMI even if unplugged or powered off
# hdmi_force_hotplug=1

# Doesn't sent initial active source message.
# Avoids bringing CEC (enabled TV) out of standby and channel switch when
# rebooting.
hdmi_ignore_cec_init=1

################################################################################
# License keys to enable GPU hardware decoding for various codecs
# to obtain keys visit the shop at http://www.raspberrypi.com
################################################################################

# decode_MPG2=0x00000000
# decode_WVC1=0x00000000
# decode_DTS=0x00000000
# decode_DDP=0x00000000

################################################################################
# End of default configuration
# all values below this line were inserted from config.txt.bk (your old config)
# and can be merged with the above values
################################################################################

# Ambilight Modul aktivieren
dtparam=spi=on

[Marci_Marc]

Und wo ist die hyperion.config.json? die solltest du doch mal posten

[devilmorpheus]

Steht doch über der config.txt

[Donald]

Das ist doch nur das Protokoll ! Bitte poste mal die hyperion.config.json.

[devilmorpheus]

Ich habe dies aus dem Hyperion Ordner

// Automatically generated configuration file for 'Hyperion daemon'
// Generated by: HyperCon (The Hyperion deamon configuration file builder

{
/// Device configuration contains the following fields:
/// * 'name' : The user friendly name of the device (only used for display purposes)
/// * 'type' : The type of the device or leds (known types for now are
/// APA102, Adalight, AmbiLed, Atmo, Hyperion-USBASP-WS2801, Hyperion-USBASP-WS2812, Lightberry, Lightpack, LPD6803, LPD8806, Multi-Lightpack, P9813, Paintpack, PhilipsHUE, PiBlaster, SEDU, file, ThinkerForge, TPM2, WS2801, WS2812b, None)
/// * [device type specific configuration]
/// * 'colorOrder' : The order of the color bytes ('rgb', 'rbg', 'bgr', etc.).
"device" :
{
"name" : "MyPi",
"type" : "ws2801",
"output" : "/dev/spidev0.0",
"rate" : 1000000,
"colorOrder" : "rgb"
},

/// Color manipulation configuration used to tune the output colors to specific surroundings.
/// The configuration contains a list of color-transforms. Each transform contains the
/// following fields:
/// * 'id' : The unique identifier of the color transformation (eg 'device_1') /// * 'leds' : The indices (or index ranges) of the leds to which this color transform applies
/// (eg '0-5, 9, 11, 12-17'). The indices are zero based. /// * 'hsv' : The manipulation in the Hue-Saturation-Value color domain with the following
/// tuning parameters:
/// - 'saturationGain' The gain adjustement of the saturation
/// - 'valueGain' The gain adjustement of the value
/// * 'red'/'green'/'blue' : The manipulation in the Red-Green-Blue color domain with the
/// following tuning parameters for each channel:
/// - 'threshold' The minimum required input value for the channel to be on
/// (else zero)
/// - 'gamma' The gamma-curve correction factor
/// - 'blacklevel' The lowest possible value (when the channel is black)
/// - 'whitelevel' The highest possible value (when the channel is white)
///
/// Next to the list with color transforms there is also a smoothing option.
/// * 'smoothing' : Smoothing of the colors in the time-domain with the following tuning
/// parameters:
/// - 'type' The type of smoothing algorithm ('linear' or 'none')
/// - 'time_ms' The time constant for smoothing algorithm in milliseconds
/// - 'updateFrequency' The update frequency of the leds in Hz
/// - 'updateDelay' The delay of the output to leds (in periods of smoothing)
"color" :
{
"correction" :
[
{
"id" : "default",
"leds" : "*",
"correctionValues" :
{
"red" : 255,
"green" : 255,
"blue" : 255
}
}
],
"temperature" :
[
{
"id" : "default",
"leds" : "*",
"temperatureValues" :
{
"red" : 255,
"green" : 255,
"blue" : 255
}
}
],
"transform" :
[
{
"id" : "default",
"leds" : "*",
"hsv" :
{
"saturationGain" : 1.0000,
"valueGain" : 1.0000
},
"hsl" :
{
"saturationGain" : 1.0000,
"luminanceGain" : 1.0000
},
"red" :
{
"threshold" : 0.0000,
"gamma" : 1.0000,
"blacklevel" : 0.0000,
"whitelevel" : 1.0000
},
"green" :
{
"threshold" : 0.0000,
"gamma" : 1.0000,
"blacklevel" : 0.0000,
"whitelevel" : 1.0000
},
"blue" :
{
"threshold" : 0.0000,
"gamma" : 1.0000,
"blacklevel" : 0.0000,
"whitelevel" : 1.0000
}
}
],
"smoothing" :
{
"type" : "linear",
"time_ms" : 200,
"updateFrequency" : 20.0000,
"updateDelay" : 0
}
},

/// The black border configuration, contains the following items:
/// * enable : true if the detector should be activated
/// * threshold : Value below which a pixel is regarded as black (value between 0.0 and 1.0)
/// * unknownFrameCnt : Number of frames without any detection before the border is set to 0 (default 600)
/// * borderFrameCnt : Number of frames before a consistent detected border gets set (default 50)
/// * maxInconsistentCnt : Number of inconsistent frames that are ignored before a new border gets a chance to proof consistency
/// * blurRemoveCnt : Number of pixels that get removed from the detected border to cut away blur (default 1)
/// * mode : Border detection mode (values=default,classic,osd)
"blackborderdetector" :
{
"enable" : true,
"threshold" : 0.0,
"unknownFrameCnt" : 600,
"borderFrameCnt" : 50,
"maxInconsistentCnt" : 10,
"blurRemoveCnt" : 1,
"mode" : "default"
},

/// The configuration of the effect engine, contains the following items:
/// * paths : An array with absolute location(s) of directories with effects
/// * color : Set static color after boot -> set effect to "" (empty) and input the values [R,G,B] and set duration_ms NOT to 0 (use 1) instead
/// * effect : The effect selected as 'boot sequence'
/// * duration_ms : The duration of the selected effect (0=endless)
/// * priority : The priority of the selected effect/static color (default=0)
"effects" :
{
"paths" :
[
"/storage/hyperion/effects"
]
},

"bootsequence" :
{
"color" : [0,0,0],
"effect" : "Rainbow swirl fast",
"duration_ms" : 3000,
"priority" : 990
},

/// The configuration of the Json/Proto forwarder. Forward messages to multiple instances of Hyperion on same and/or other hosts
/// 'proto' is mostly used for video streams and 'json' for effects
/// * proto : Proto server adress and port of your target. Syntax:[IP:PORT] -> ["127.0.0.1:19447"] or more instances to forward ["127.0.0.1:19447","192.168.0.24:19449"]
/// * json : Json server adress and port of your target. Syntax:[IP:PORT] -> ["127.0.0.1:19446"] or more instances to forward ["127.0.0.1:19446","192.168.0.24:19448"]
/// HINT: If you redirect to "127.0.0.1" (localhost) you could start a second hyperion with another device/led config!
/// Be sure your client(s) is/are listening on the configured ports. The second Hyperion (if used) also needs to be configured! (HyperCon -> External -> Json Server/Proto Server)
// "forwarder" :
// {
// "proto" : ["127.0.0.1:19447"],
// "json" : ["127.0.0.1:19446"]
// },

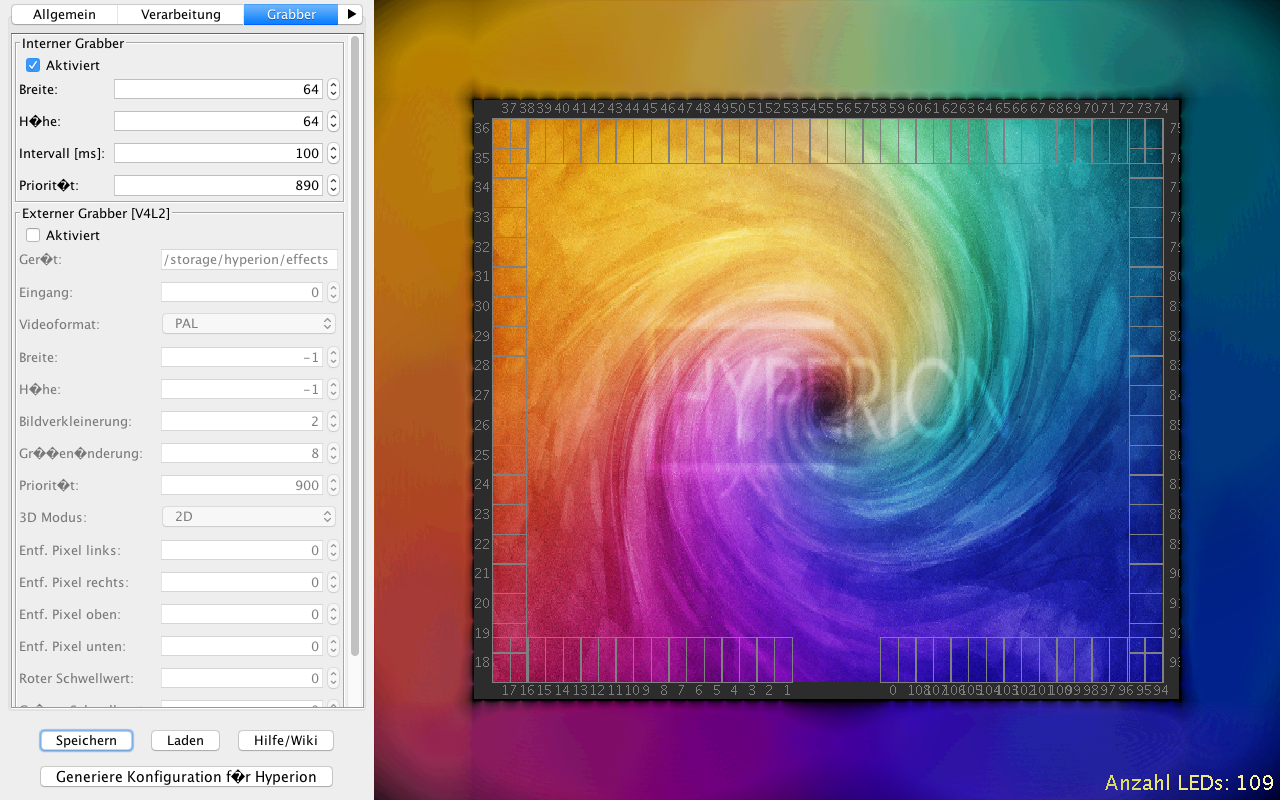

/// The configuration for the frame-grabber, contains the following items:
/// * width : The width of the grabbed frames [pixels]
/// * height : The height of the grabbed frames [pixels]
/// * frequency_Hz : The frequency of the frame grab [Hz]
/// * priority : The priority
"framegrabber" :
{
"width" : 80,
"height" : 45,
"frequency_Hz" : 10.0,
"priority" : 900
},

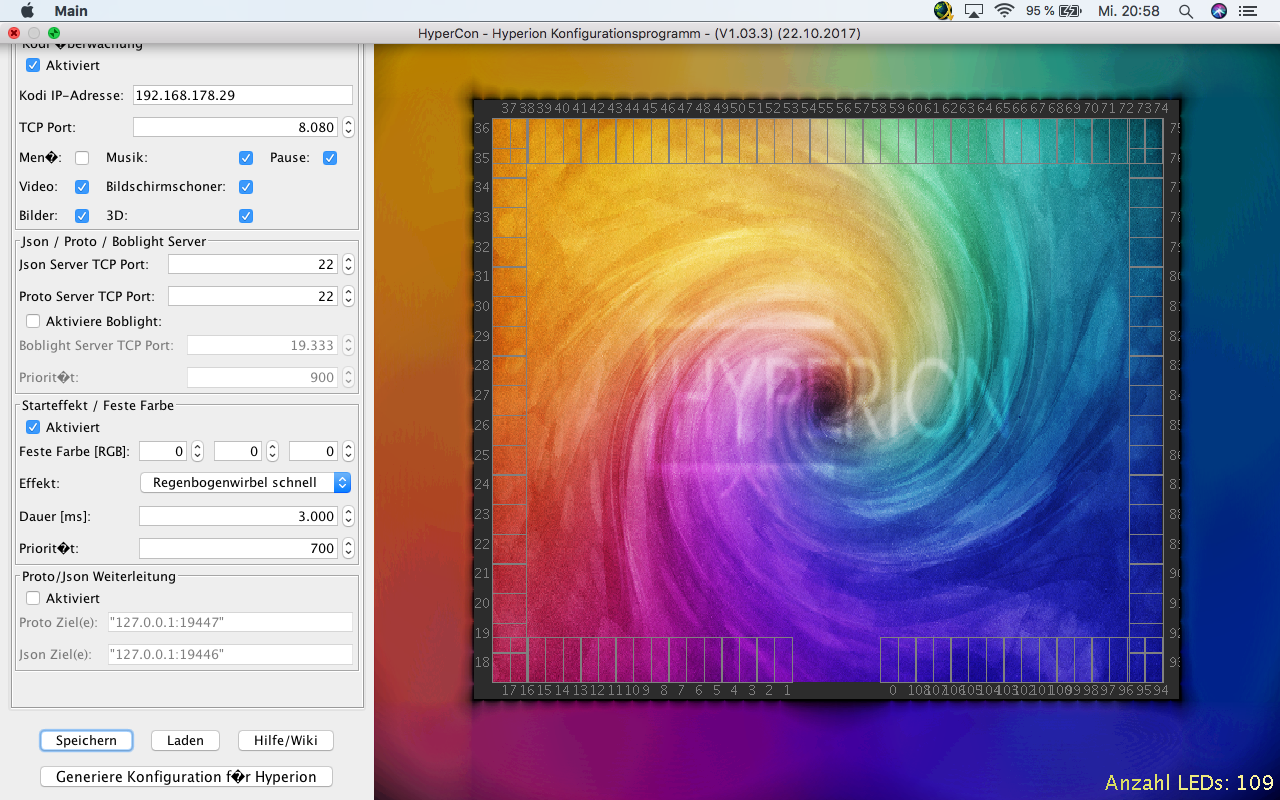

/// The configuration of the Kodi connection used to enable and disable the frame-grabber. Contains the following fields:
/// * xbmcAddress : The IP address of the Kodi-host
/// * xbmcTcpPort : The TCP-port of the Kodi-server
/// * grabVideo : Flag indicating that the frame-grabber is on(true) during video playback
/// * grabPictures : Flag indicating that the frame-grabber is on(true) during picture show
/// * grabAudio : Flag indicating that the frame-grabber is on(true) during audio playback
/// * grabMenu : Flag indicating that the frame-grabber is on(true) at the Kodi menu
/// * grabScreensaver : Flag indicating that the frame-grabber is on(true) when Kodi is on screensaver
/// * enable3DDetection : Flag indicating that the frame-grabber should switch to a 3D compatible modus if a 3D video is playing
// "xbmcVideoChecker" :
// {
// "xbmcAddress" : "127.0.0.1",
// "xbmcTcpPort" : 9090,
// "grabVideo" : true,
// "grabPictures" : true,
// "grabAudio" : true,
// "grabMenu" : false,
// "grabScreensaver" : true,
// "enable3DDetection" : true
// },

/// The configuration of the Json server which enables the json remote interface
/// * port : Port at which the json server is started
"jsonServer" :
{
"port" : 19444
},

/// The configuration of the Proto server which enables the protobuffer remote interface
/// * port : Port at which the protobuffer server is started
"protoServer" :
{
"port" : 19445
},

/// The configuration of the boblight server which enables the boblight remote interface
/// * port : Port at which the boblight server is started
// "boblightServer" :
// {
// "port" : 19333,
// "priority" : 900
// },

/// Configuration for the embedded V4L2 grabber
/// * device : V4L2 Device to use [default="/dev/video0"]
/// * input : V4L2 input to use [default=0]
/// * standard : Video standard (no-change/PAL/NTSC) [default="no-change"]
/// * width : V4L2 width to set [default=-1]
/// * height : V4L2 height to set [default=-1]
/// * frameDecimation : Frame decimation factor [default=2]
/// * sizeDecimation : Size decimation factor [default=8]
/// * priority : Hyperion priority channel [default=800]
/// * mode : 3D mode to use 2D/3DSBS/3DTAB (note: no autodetection) [default="2D"]
/// * cropLeft : Cropping from the left [default=0]
/// * cropRight : Cropping from the right [default=0]
/// * cropTop : Cropping from the top [default=0]
/// * cropBottom : Cropping from the bottom [default=0]
/// * redSignalThreshold : Signal threshold for the red channel between 0.0 and 1.0 [default=0.0]
/// * greenSignalThreshold : Signal threshold for the green channel between 0.0 and 1.0 [default=0.0]
/// * blueSignalThreshold : Signal threshold for the blue channel between 0.0 and 1.0 [default=0.0]
// "grabber-v4l2" :
// {
// "device" : "/dev/video0",
// "input" : 0,
// "standard" : "no-change",
// "width" : -1,
// "height" : -1,
// "frameDecimation" : 2,
// "sizeDecimation" : 8,
// "priority" : 800,
// "mode" : "2D",
// "cropLeft" : 0,
// "cropRight" : 0,
// "cropTop" : 0,
// "cropBottom" : 0,
// "redSignalThreshold" : 0.0,
// "greenSignalThreshold" : 0.0,
// "blueSignalThreshold" : 0.0
// },

/// The configuration for each individual led. This contains the specification of the area
/// averaged of an input image for each led to determine its color. Each item in the list
/// contains the following fields:
/// * index: The index of the led. This determines its location in the string of leds; zero
/// being the first led.
/// * hscan: The fractional part of the image along the horizontal used for the averaging
/// (minimum and maximum inclusive)
/// * vscan: The fractional part of the image along the vertical used for the averaging
/// (minimum and maximum inclusive)
"leds" :
[
{
"index" : 0,
"hscan" : { "minimum" : 0.5000, "maximum" : 0.5625 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 1,
"hscan" : { "minimum" : 0.4375, "maximum" : 0.5000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 2,
"hscan" : { "minimum" : 0.3750, "maximum" : 0.4375 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 3,
"hscan" : { "minimum" : 0.3125, "maximum" : 0.3750 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 4,
"hscan" : { "minimum" : 0.2500, "maximum" : 0.3125 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 5,
"hscan" : { "minimum" : 0.1875, "maximum" : 0.2500 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 6,
"hscan" : { "minimum" : 0.1250, "maximum" : 0.1875 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 7,
"hscan" : { "minimum" : 0.0625, "maximum" : 0.1250 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 8,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0625 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 9,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.8571, "maximum" : 1.0000 }
},
{
"index" : 10,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.7143, "maximum" : 0.8571 }
},
{
"index" : 11,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.5714, "maximum" : 0.7143 }
},
{
"index" : 12,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.4286, "maximum" : 0.5714 }
},
{
"index" : 13,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.2857, "maximum" : 0.4286 }
},
{
"index" : 14,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.1429, "maximum" : 0.2857 }
},
{
"index" : 15,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.1429 }
},
{
"index" : 16,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0625 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 17,
"hscan" : { "minimum" : 0.0625, "maximum" : 0.1250 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 18,
"hscan" : { "minimum" : 0.1250, "maximum" : 0.1875 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 19,
"hscan" : { "minimum" : 0.1875, "maximum" : 0.2500 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 20,
"hscan" : { "minimum" : 0.2500, "maximum" : 0.3125 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 21,
"hscan" : { "minimum" : 0.3125, "maximum" : 0.3750 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 22,
"hscan" : { "minimum" : 0.3750, "maximum" : 0.4375 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 23,
"hscan" : { "minimum" : 0.4375, "maximum" : 0.5000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 24,
"hscan" : { "minimum" : 0.5000, "maximum" : 0.5625 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 25,
"hscan" : { "minimum" : 0.5625, "maximum" : 0.6250 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 26,
"hscan" : { "minimum" : 0.6250, "maximum" : 0.6875 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 27,
"hscan" : { "minimum" : 0.6875, "maximum" : 0.7500 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 28,
"hscan" : { "minimum" : 0.7500, "maximum" : 0.8125 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 29,
"hscan" : { "minimum" : 0.8125, "maximum" : 0.8750 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 30,
"hscan" : { "minimum" : 0.8750, "maximum" : 0.9375 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 31,
"hscan" : { "minimum" : 0.9375, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 32,a
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.1429 }
},
{
"index" : 33,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.1429, "maximum" : 0.2857 }
},
{
"index" : 34,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.2857, "maximum" : 0.4286 }
},
{
"index" : 35,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.4286, "maximum" : 0.5714 }
},
{
"index" : 36,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.5714, "maximum" : 0.7143 }
},
{
"index" : 37,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.7143, "maximum" : 0.8571 }
},
{
"index" : 38,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.8571, "maximum" : 1.0000 }
},
{
"index" : 39,
"hscan" : { "minimum" : 0.9375, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 40,
"hscan" : { "minimum" : 0.8750, "maximum" : 0.9375 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 41,
"hscan" : { "minimum" : 0.8125, "maximum" : 0.8750 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 42,
"hscan" : { "minimum" : 0.7500, "maximum" : 0.8125 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 43,
"hscan" : { "minimum" : 0.6875, "maximum" : 0.7500 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 44,
"hscan" : { "minimum" : 0.6250, "maximum" : 0.6875 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 45,
"hscan" : { "minimum" : 0.5625, "maximum" : 0.6250 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
}
],

"endOfJson" : "endOfJson"
}

und diese aus dem Config Ordner

// Automatically generated configuration file for Hyperion ambilight daemon
// Notice: All values are explained with comments at our wiki: wiki.hyperion-project.org (config area)
// Generated by: HyperCon (The Hyperion deamon configuration file builder)
// Created with HyperCon V1.03.3 (22.10.2017)

{

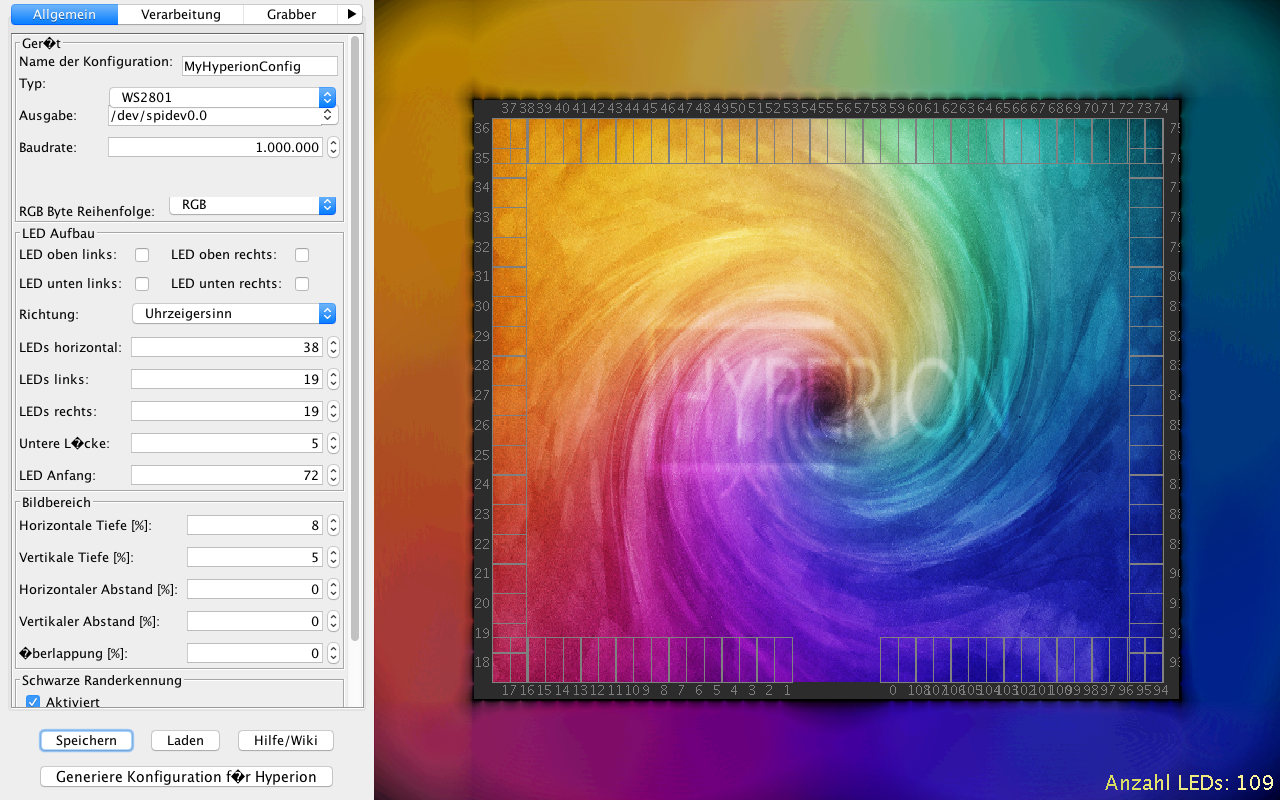

// DEVICE CONFIGURATION
"device" :
{
"name" : "MyHyperionConfig",
"type" : "ws2801",
"output" : "/dev/spidev0.0",
"rate" : 1000000,
"colorOrder" : "rgb"
},

// COLOR CALIBRATION CONFIG
"color" :
{
"channelAdjustment" :
[
{
"id" : "default",
"leds" : "*",
"pureRed" :
{
"redChannel" : 255,
"greenChannel" : 0,
"blueChannel" : 0
},
"pureGreen" :
{
"redChannel" : 0,
"greenChannel" : 255,
"blueChannel" : 0
},
"pureBlue" :
{
"redChannel" : 0,
"greenChannel" : 0,
"blueChannel" : 255
}
}
],
"temperature" :
[
{
"id" : "default",
"leds" : "*",
"correctionValues" :
{
"red" : 255,
"green" : 255,
"blue" : 255
}
}
],
"transform" :
[
{
"id" : "default",
"leds" : "*",
"hsl" :
{
"saturationGain" : 1.0000,
"luminanceGain" : 1.0000,
"luminanceMinimum" : 0.0000
},
"red" :
{
"threshold" : 0.0000,
"gamma" : 2.5000
},
"green" :
{
"threshold" : 0.0000,
"gamma" : 2.5000
},
"blue" :
{
"threshold" : 0.0000,
"gamma" : 2.5000
}
}
],

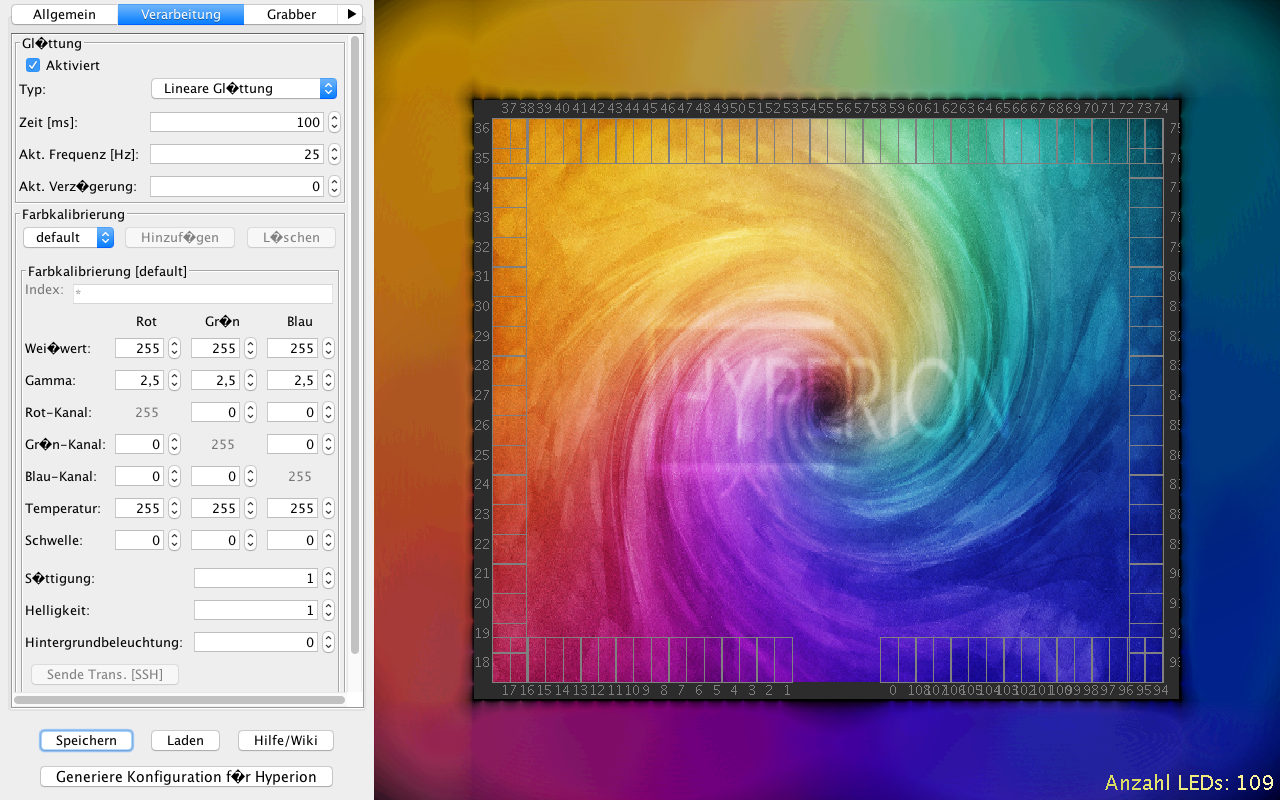

// SMOOTHING CONFIG
"smoothing" :
{
"type" : "linear",
"time_ms" : 100,
"updateFrequency" : 25.0000,
"updateDelay" : 0
}
},

// NO V4L2 GRABBER CONFIG
// FRAME GRABBER CONFIG
"framegrabber" :
{
"width" : 64,
"height" : 64,
"frequency_Hz" : 10.0,
"priority" : 890
},

// BLACKBORDER CONFIG
"blackborderdetector" :
{
"enable" : true,
"threshold" : 0.0,
"unknownFrameCnt" : 600,
"borderFrameCnt" : 50,
"maxInconsistentCnt" : 10,
"blurRemoveCnt" : 1,
"mode" : "default"
},

// KODI CHECK CONFIG
"xbmcVideoChecker" :
{
"xbmcAddress" : "192.168.178.29",
"xbmcTcpPort" : 8080,
"grabVideo" : true,
"grabPictures" : true,
"grabAudio" : true,
"grabMenu" : false,
"grabPause" : false,
"grabScreensaver" : true,
"enable3DDetection" : true
},

// BOOTEFFECT CONFIG
"bootsequence" :
{
"color" : [0,0,0],
"effect" : "Rainbow swirl fast",
"duration_ms" : 3000,
"priority" : 700
},

// JSON SERVER CONFIG
"jsonServer" :
{
"port" : 22
},

// PROTO SERVER CONFIG
"protoServer" :
{
"port" : 22
},

// EFFECT PATH
"effects" :
{
"paths" :
[
"/storage/hyperion/effects",
"/usr/share/hyperion/effects"
]
},

// NO BOBLIGHT SERVER CONFIG
// NO JSON/PROTO FORWARD CONFIG

// LED CONFIGURATION
"leds" :
[
{
"index" : 0,
"hscan" : { "minimum" : 0.5789, "maximum" : 0.6053 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 1,
"hscan" : { "minimum" : 0.4211, "maximum" : 0.4474 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 2,
"hscan" : { "minimum" : 0.3947, "maximum" : 0.4211 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 3,
"hscan" : { "minimum" : 0.3684, "maximum" : 0.3947 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 4,
"hscan" : { "minimum" : 0.3421, "maximum" : 0.3684 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 5,
"hscan" : { "minimum" : 0.3158, "maximum" : 0.3421 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 6,
"hscan" : { "minimum" : 0.2895, "maximum" : 0.3158 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 7,
"hscan" : { "minimum" : 0.2632, "maximum" : 0.2895 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 8,
"hscan" : { "minimum" : 0.2368, "maximum" : 0.2632 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 9,
"hscan" : { "minimum" : 0.2105, "maximum" : 0.2368 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 10,
"hscan" : { "minimum" : 0.1842, "maximum" : 0.2105 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 11,
"hscan" : { "minimum" : 0.1579, "maximum" : 0.1842 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 12,
"hscan" : { "minimum" : 0.1316, "maximum" : 0.1579 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 13,
"hscan" : { "minimum" : 0.1053, "maximum" : 0.1316 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 14,
"hscan" : { "minimum" : 0.0789, "maximum" : 0.1053 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 15,
"hscan" : { "minimum" : 0.0526, "maximum" : 0.0789 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 16,
"hscan" : { "minimum" : 0.0263, "maximum" : 0.0526 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 17,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0263 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 18,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.9474, "maximum" : 1.0000 }
},
{
"index" : 19,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.8947, "maximum" : 0.9474 }
},
{
"index" : 20,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.8421, "maximum" : 0.8947 }
},
{
"index" : 21,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.7895, "maximum" : 0.8421 }
},
{
"index" : 22,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.7368, "maximum" : 0.7895 }
},
{
"index" : 23,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.6842, "maximum" : 0.7368 }
},
{
"index" : 24,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.6316, "maximum" : 0.6842 }
},
{
"index" : 25,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.5789, "maximum" : 0.6316 }
},
{
"index" : 26,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.5263, "maximum" : 0.5789 }
},
{
"index" : 27,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.4737, "maximum" : 0.5263 }
},
{
"index" : 28,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.4211, "maximum" : 0.4737 }
},
{
"index" : 29,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.3684, "maximum" : 0.4211 }
},
{
"index" : 30,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.3158, "maximum" : 0.3684 }
},
{
"index" : 31,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.2632, "maximum" : 0.3158 }
},
{
"index" : 32,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.2105, "maximum" : 0.2632 }
},
{
"index" : 33,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.1579, "maximum" : 0.2105 }
},
{
"index" : 34,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.1053, "maximum" : 0.1579 }
},
{
"index" : 35,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.0526, "maximum" : 0.1053 }
},
{
"index" : 36,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0500 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0526 }
},
{
"index" : 37,
"hscan" : { "minimum" : 0.0000, "maximum" : 0.0263 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 38,
"hscan" : { "minimum" : 0.0263, "maximum" : 0.0526 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 39,
"hscan" : { "minimum" : 0.0526, "maximum" : 0.0789 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 40,
"hscan" : { "minimum" : 0.0789, "maximum" : 0.1053 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 41,
"hscan" : { "minimum" : 0.1053, "maximum" : 0.1316 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 42,
"hscan" : { "minimum" : 0.1316, "maximum" : 0.1579 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 43,
"hscan" : { "minimum" : 0.1579, "maximum" : 0.1842 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 44,
"hscan" : { "minimum" : 0.1842, "maximum" : 0.2105 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 45,
"hscan" : { "minimum" : 0.2105, "maximum" : 0.2368 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 46,
"hscan" : { "minimum" : 0.2368, "maximum" : 0.2632 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 47,
"hscan" : { "minimum" : 0.2632, "maximum" : 0.2895 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 48,
"hscan" : { "minimum" : 0.2895, "maximum" : 0.3158 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 49,
"hscan" : { "minimum" : 0.3158, "maximum" : 0.3421 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 50,
"hscan" : { "minimum" : 0.3421, "maximum" : 0.3684 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 51,
"hscan" : { "minimum" : 0.3684, "maximum" : 0.3947 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 52,
"hscan" : { "minimum" : 0.3947, "maximum" : 0.4211 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 53,
"hscan" : { "minimum" : 0.4211, "maximum" : 0.4474 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 54,
"hscan" : { "minimum" : 0.4474, "maximum" : 0.4737 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 55,
"hscan" : { "minimum" : 0.4737, "maximum" : 0.5000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 56,
"hscan" : { "minimum" : 0.5000, "maximum" : 0.5263 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 57,
"hscan" : { "minimum" : 0.5263, "maximum" : 0.5526 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 58,
"hscan" : { "minimum" : 0.5526, "maximum" : 0.5789 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 59,
"hscan" : { "minimum" : 0.5789, "maximum" : 0.6053 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 60,
"hscan" : { "minimum" : 0.6053, "maximum" : 0.6316 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 61,
"hscan" : { "minimum" : 0.6316, "maximum" : 0.6579 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 62,
"hscan" : { "minimum" : 0.6579, "maximum" : 0.6842 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 63,
"hscan" : { "minimum" : 0.6842, "maximum" : 0.7105 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 64,
"hscan" : { "minimum" : 0.7105, "maximum" : 0.7368 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 65,
"hscan" : { "minimum" : 0.7368, "maximum" : 0.7632 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 66,
"hscan" : { "minimum" : 0.7632, "maximum" : 0.7895 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 67,
"hscan" : { "minimum" : 0.7895, "maximum" : 0.8158 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 68,
"hscan" : { "minimum" : 0.8158, "maximum" : 0.8421 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 69,
"hscan" : { "minimum" : 0.8421, "maximum" : 0.8684 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 70,
"hscan" : { "minimum" : 0.8684, "maximum" : 0.8947 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 71,
"hscan" : { "minimum" : 0.8947, "maximum" : 0.9211 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 72,
"hscan" : { "minimum" : 0.9211, "maximum" : 0.9474 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 73,
"hscan" : { "minimum" : 0.9474, "maximum" : 0.9737 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 74,
"hscan" : { "minimum" : 0.9737, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0800 }
},
{
"index" : 75,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0000, "maximum" : 0.0526 }
},
{
"index" : 76,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.0526, "maximum" : 0.1053 }
},
{
"index" : 77,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.1053, "maximum" : 0.1579 }
},
{
"index" : 78,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.1579, "maximum" : 0.2105 }
},
{
"index" : 79,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.2105, "maximum" : 0.2632 }
},
{
"index" : 80,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.2632, "maximum" : 0.3158 }
},
{
"index" : 81,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.3158, "maximum" : 0.3684 }
},
{
"index" : 82,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.3684, "maximum" : 0.4211 }
},
{
"index" : 83,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.4211, "maximum" : 0.4737 }
},
{
"index" : 84,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.4737, "maximum" : 0.5263 }
},
{
"index" : 85,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.5263, "maximum" : 0.5789 }
},
{
"index" : 86,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.5789, "maximum" : 0.6316 }
},
{
"index" : 87,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.6316, "maximum" : 0.6842 }
},
{
"index" : 88,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.6842, "maximum" : 0.7368 }
},
{
"index" : 89,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.7368, "maximum" : 0.7895 }
},
{
"index" : 90,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.7895, "maximum" : 0.8421 }
},
{
"index" : 91,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.8421, "maximum" : 0.8947 }
},
{
"index" : 92,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.8947, "maximum" : 0.9474 }
},
{
"index" : 93,
"hscan" : { "minimum" : 0.9500, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.9474, "maximum" : 1.0000 }
},
{
"index" : 94,
"hscan" : { "minimum" : 0.9737, "maximum" : 1.0000 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 95,
"hscan" : { "minimum" : 0.9474, "maximum" : 0.9737 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 96,
"hscan" : { "minimum" : 0.9211, "maximum" : 0.9474 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 97,
"hscan" : { "minimum" : 0.8947, "maximum" : 0.9211 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 98,
"hscan" : { "minimum" : 0.8684, "maximum" : 0.8947 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 99,
"hscan" : { "minimum" : 0.8421, "maximum" : 0.8684 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 100,
"hscan" : { "minimum" : 0.8158, "maximum" : 0.8421 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 101,
"hscan" : { "minimum" : 0.7895, "maximum" : 0.8158 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 102,
"hscan" : { "minimum" : 0.7632, "maximum" : 0.7895 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 103,
"hscan" : { "minimum" : 0.7368, "maximum" : 0.7632 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 104,
"hscan" : { "minimum" : 0.7105, "maximum" : 0.7368 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 105,
"hscan" : { "minimum" : 0.6842, "maximum" : 0.7105 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 106,
"hscan" : { "minimum" : 0.6579, "maximum" : 0.6842 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 107,
"hscan" : { "minimum" : 0.6316, "maximum" : 0.6579 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
},
{
"index" : 108,
"hscan" : { "minimum" : 0.6053, "maximum" : 0.6316 },
"vscan" : { "minimum" : 0.9200, "maximum" : 1.0000 }
}
],

"endOfJson" : "endOfJson"
}

[Marci_Marc]

Die aus dem Config Ordner ist die Richtige. Ist nur die Frage, ob sie auch im richtigen Pfad liegt. Je nach Betriebssystem ist das nämlich ein Anderer. Ich nutze OSMC als Betriebssystem und dort muss die hyperion.config.json im Ordner "etc/hyperion/" liegen

[devilmorpheus]

Ich nutze openelec

[Johnny1982fd]

Du solltest zu Libreelec wechseln. (OE ist tot)

Ich hab LE auch komplett neu installiert.
Du musst dann Hyperion mittels Addon installieren. Anschließend nutzt du Hypercon für LE angepasst und nicht das generische!

https://libreelec.wiki/hypercon
